12V GT SERIES
OVERVIEW

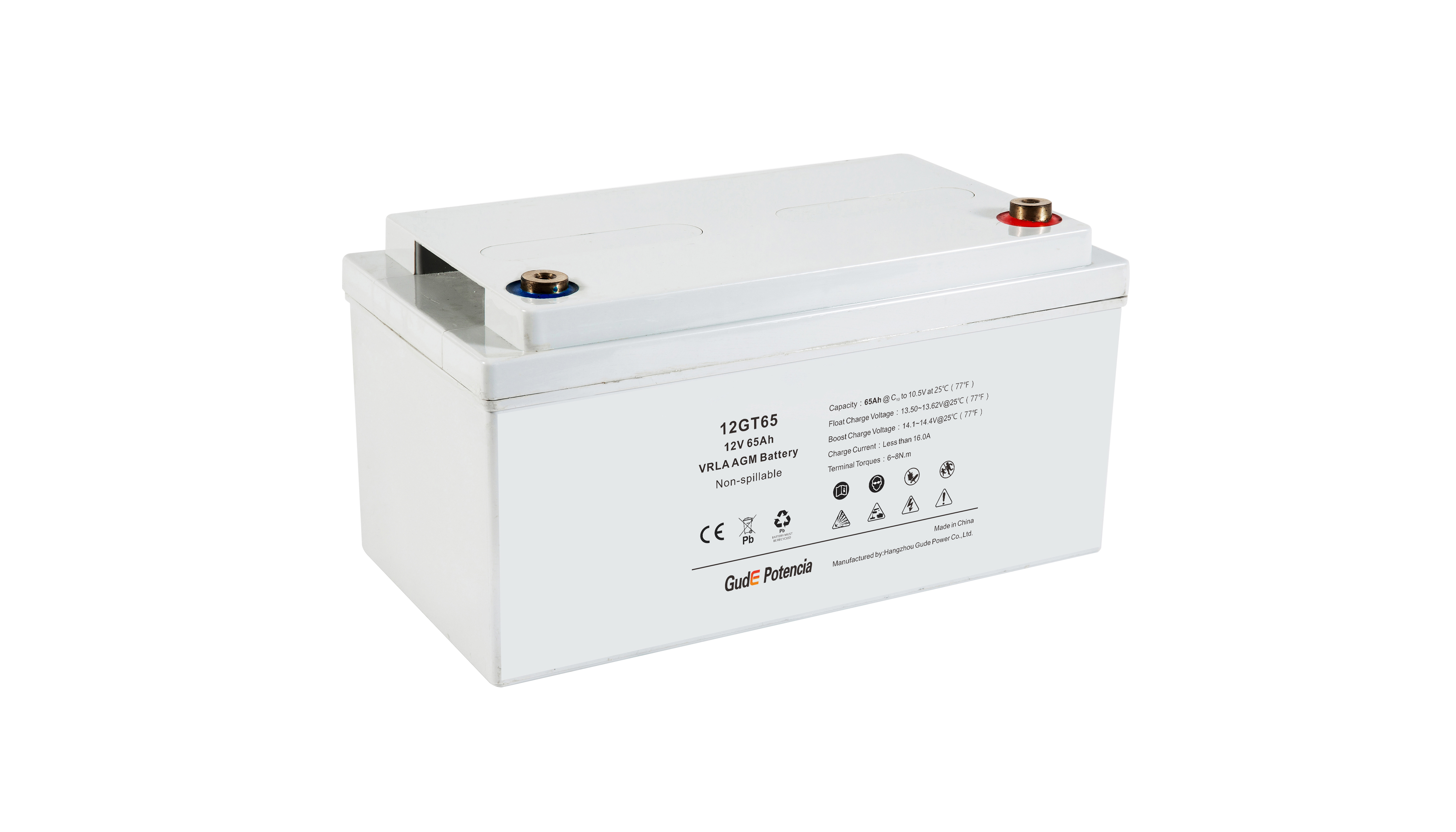

GudE Potencia GT Series is top terminal design VRLA AGM battery for General Purpose applications. With advanced manufacturing techniques and industrial scale, GT Series delivers high energy denesity and high reliability performance, highly suited for UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications.
FEATURES AND BENEFITS
- 12 years design life at 25°C (77°F)
- Valve Regulated Lead Acid AGM technology
- High energy density and high reliability
- Standard sizes for general purpose
- Low self-discharge rate
- Self-regulating pressure relief valve with flame arrester
APPLICATIONS
- Telecommunication
- Uninterrupted Power Supply (UPS)
- Utilities
- Cable Television
- Security Systems
- Control Equipments
- Medical Equipments
- Power Tools and toys
- Emergency Power Systems
PHYSICAL SPECIFICATIONS
| Model No. | Dimensions (mm) | Weight | Terminal | |||||
| Length | Width | Height | Total Height | (kg) | Type | Torque (N·m) |
||
| 12GT7 | 151 | 65 | 95 | 99 | 2.12 | L Type | / | |
| 12GT7.2 | 151 | 65 | 95 | 99 | 2.19 | L Type | / | |
| 12GT7.5 | 151 | 65 | 95 | 99 | 2.28 | L Type | / | |
| 12GT9 | 151 | 65 | 95 | 99 | 2.6 | L Type | / | |
| 12GT10 | 151 | 99 | 97 | 101 | 3.44 | L Type | / | |
| 12GT12 | 151 | 99 | 97 | 101 | 3.68 | L Type | / | |
| 12GT20 | 181 | 77 | 170 | 175 | 6.2 | F-M5 | 3-4 | |
| 12GT24 | 178 | 167 | 125 | 128 | 8.2 | F-M5 | 3-4 | |
| 12GT38 | 196 | 165 | 175 | 180 | 12.8 | F-M6 | 6-8 | |
| 12GT50 | 330 | 171 | 170 | 175 | 18.5 | F-M6 | 6-8 | |
| 12GT65 | 330 | 171 | 170 | 175 | 21.5 | F-M6 | 6-8 | |
| 12GT80 | 330 | 174 | 215 | 220 | 25 | F-M8 | 10-12 | |
| 12GT90 | 330 | 174 | 215 | 220 | 27 | F-M8 | 10-12 | |
| 12GT100 | 330 | 174 | 215 | 220 | 29 | F-M8 | 10-12 | |
| 12GT120 | 405 | 174 | 209 | 232 | 33.5 | F-M8 | 10-12 | |
| 12GT150 | 483 | 170 | 241 | 248 | 41.5 | F-M8 | 10-12 | |
| 12GT180 | 520 | 240 | 220 | 228 | 53 | F-M8 | 10-12 | |
| 12GT200 | 520 | 240 | 220 | 228 | 58 | F-M8 | 10-12 | |
| 12GT250 | 525 | 267 | 220 | 228 | 62.5 | F-M8 | 10-12 | |
| 12GT250 | 525 | 267 | 220 | 228 | 66 | F-M8 | 10-12 | |
ELECTRICAL SPECIFICATIONS
| Model No. | Number of Cells | Nominal Voltage (V) | Capacity ( 25℃) | Internal Resist. (mΩ) |
Short Circuit Current (A) |
Maximum Current | |||||
| C10 / C20 @1.8V/cell | C8 @ 1.75V/cell | C3 @ 1.70V/cell | C1 @ 1.60V/cell | C15min @ 1.67V/cell | Charge | Discharge (5s) |
|||||
| (Ah) | (W/cell) | (A) | |||||||||
| 12GT7 | 6 | 12 | 7.0 | 6.6 | 5.7 | 4.6 | 23.6 | < 28.00 | 600 | 2.1 | 105 |
| 12GT7.2 | 6 | 12 | 7.2 | 6.7 | 5.8 | 4.7 | 24 | < 26.00 | 600 | 2.1 | 105 |
| 12GT7.5 | 6 | 12 | 7.5 | 7.0 | 6.0 | 4.9 | 25 | < 25.00 | 600 | 2.1 | 105 |
| 12GT9 | 6 | 12 | 9 | 8.5 | 7.4 | 5.9 | 30 | < 20.00 | 620 | 2.3 | 135 |
| 12GT10 | 6 | 12 | 10 | 9.4 | 8.2 | 6.6 | 33.7 | < 20.00 | 630 | 3.0 | 180 |
| 12GT12 | 6 | 12 | 12 | 11.3 | 9.8 | 7.9 | 40 | < 19.00 | 630 | 3.6 | 180 |
| 12GT20 | 6 | 12 | 20 | 19.6 | 16.4 | 12.5 | 67.3 | < 12.00 | 800 | 6.0 | 300 |
| 12GT24 | 6 | 12 | 24 | 23.5 | 21.0 | 17.0 | 88 | < 10.00 | 1000 | 7.2 | 310 |
| 12GT38 | 6 | 12 | 38 | 37.2 | 31.7 | 26.7 | 120 | < 9.50 | 1250 | 9.5 | 400 |
| 12GT50 | 6 | 12 | 50 | 49.0 | 41.1 | 33.5 | 156 | < 6.50 | 1700 | 12.5 | 500 |
| 12GT65 | 6 | 12 | 65 | 63.7 | 53.5 | 43.5 | 204 | < 6.20 | 1900 | 16.0 | 650 |
| 12GT80 | 6 | 12 | 80 | 78.4 | 65.3 | 53.5 | 250 | < 6.00 | 2000 | 20.0 | 700 |
| 12GT90 | 6 | 12 | 90 | 88.2 | 74.0 | 60.2 | 282 | < 5.50 | 2200 | 22.5 | 720 |
| 12GT100 | 6 | 12 | 100 | 98.0 | 82.2 | 66.9 | 313 | < 5.00 | 2600 | 25.0 | 800 |
| 12GT120 | 6 | 12 | 120 | 117.6 | 98.6 | 80.3 | 376 | < 4.00 | 3000 | 30.0 | 960 |
| 12GT150 | 6 | 12 | 150 | 147.0 | 124.0 | 100.0 | 470 | < 3.50 | 3400 | 37.5 | 1200 |
| 12GT180 | 6 | 12 | 180 | 176.4 | 148.0 | 121.0 | 564 | < 3.30 | 3400 | 45.0 | 1200 |
| 12GT200 | 6 | 12 | 200 | 196.0 | 164.0 | 133.0 | 583 | < 3.00 | 4000 | 50.0 | 1500 |
| 12GT220 | 6 | 12 | 220 | 215.6 | 181.0 | 145.0 | 642 | < 2.80 | 4200 | 55.0 | 1600 |
| 12GT250 | 6 | 12 | 250 | 245.0 | 206.0 | 165.0 | 730 | < 2.60 | 4600 | 62.5 | 1800 |
| • 7AH ~24Ah nominal capcity are based on C20 to 1.75V/cell, 38Ah ~250Ah nominal capacity are based on C10 to 1.80V/cell. | |||||||||||
