LFP BATTERY SYSTEM FOR IDC CENTER
HIGH RATE LFP BATTERY SYSTEM
FOR UPS & IDC DATA CENTER
GudE Potencia High Rate LFP Battery System provides high rate DC power with optimal protection against an outage in a number of applications including telecom, medical, banks, and IDC data center. Thanks to up to 6C high rate LFP Cells and reliable BMS, GudE Potencia High Rate LFP Battery System may work with UPS immediately to provide back power to protect critical IT equipment during the power outage. It is an idea backup power for UPS and IDC datacenters.
GENERAL INTRODUCTION

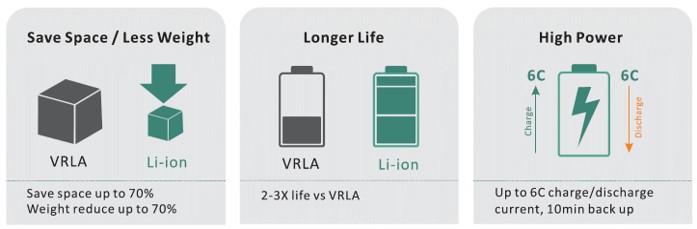

BENEFITS

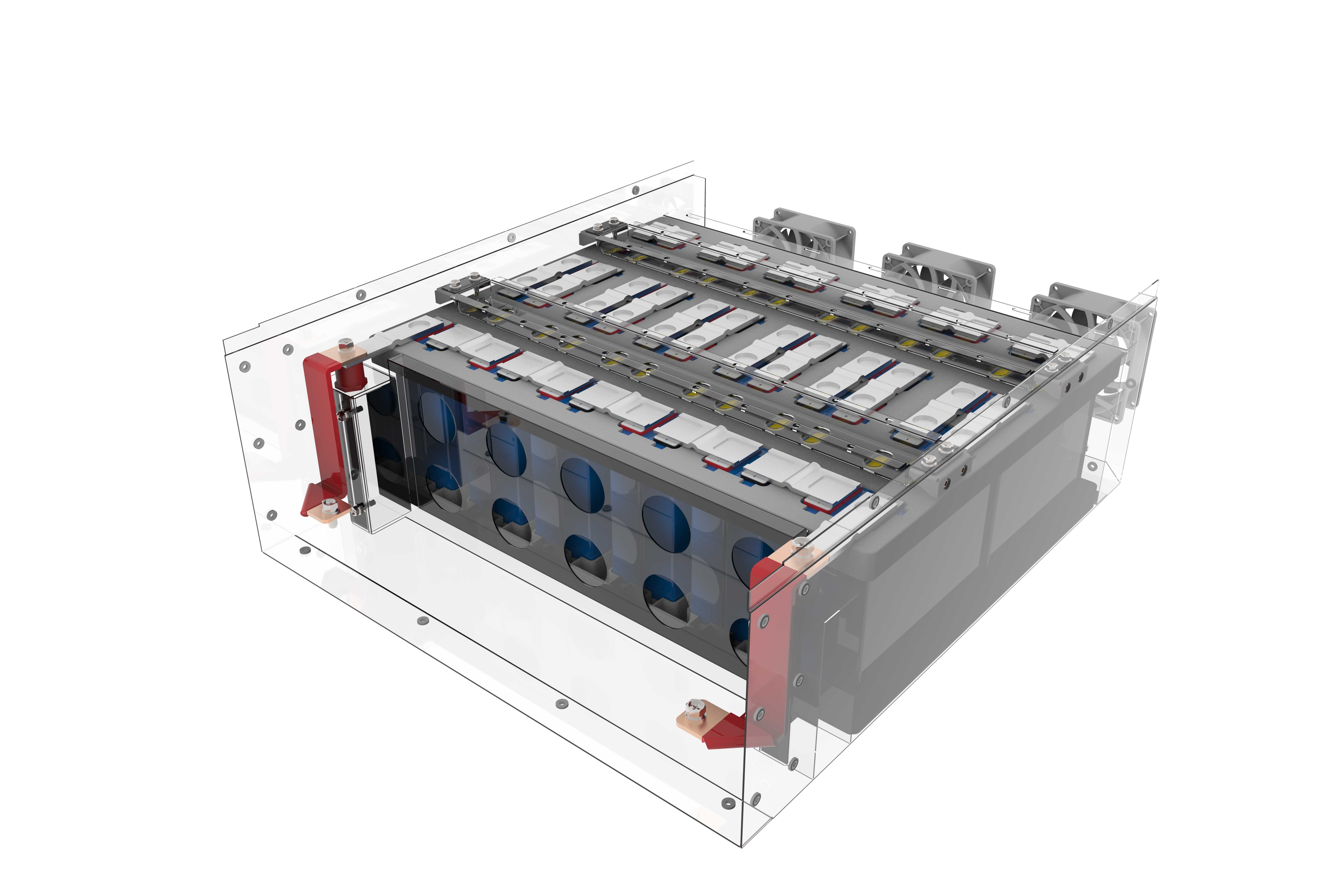

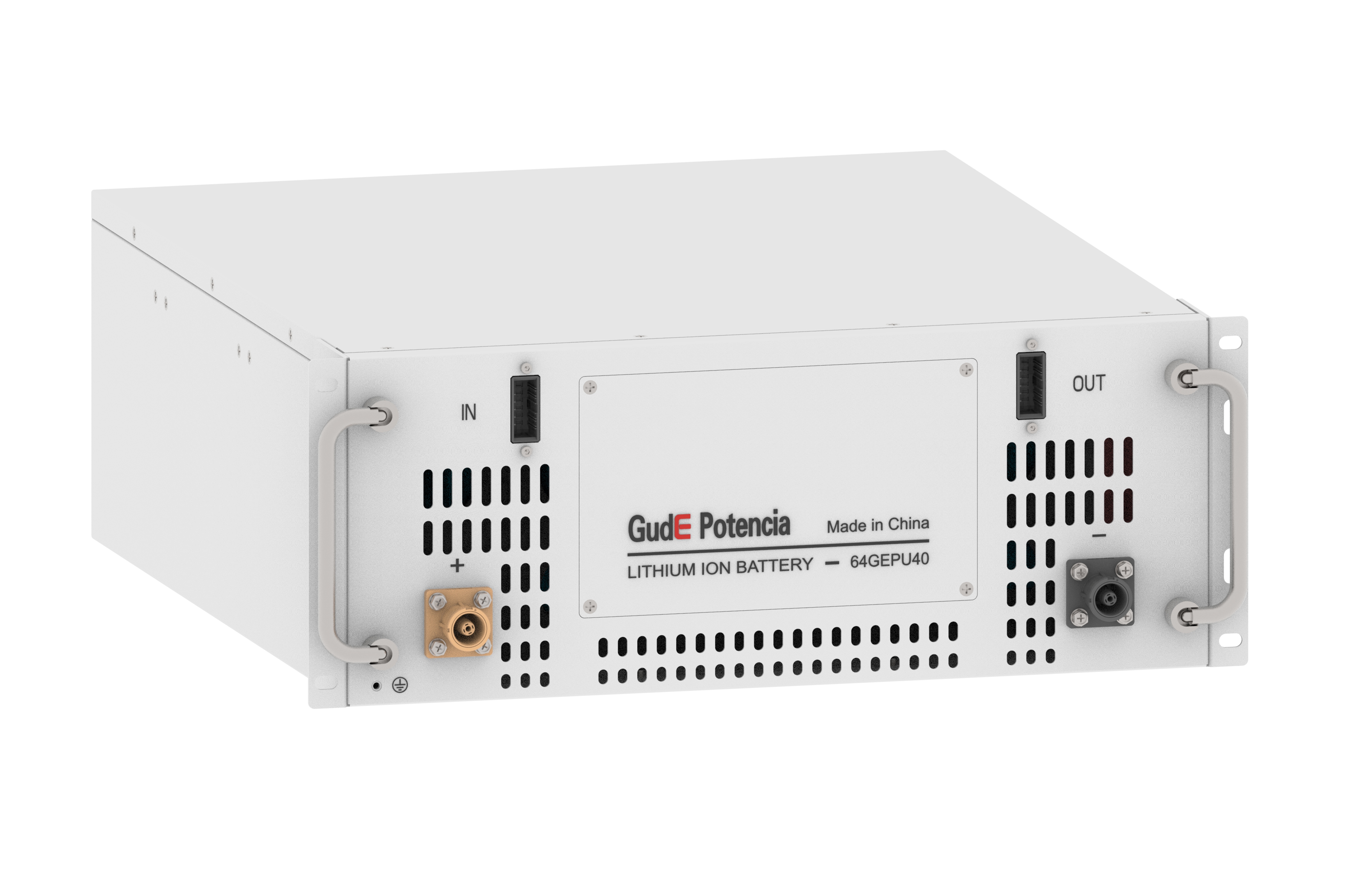

FEATURES OF BATTERY MODULES
| ► | Each Battery Module is equipped with BMU | ||||
| ► | Proven high rate LFP Cells for high safety | ||||
| ► | Up to 6C charge and discharge capability | ||||
| ► | Flexible designed for containerized solutions | ||||
| ► | Compact design with effective heat dissipations | ||||

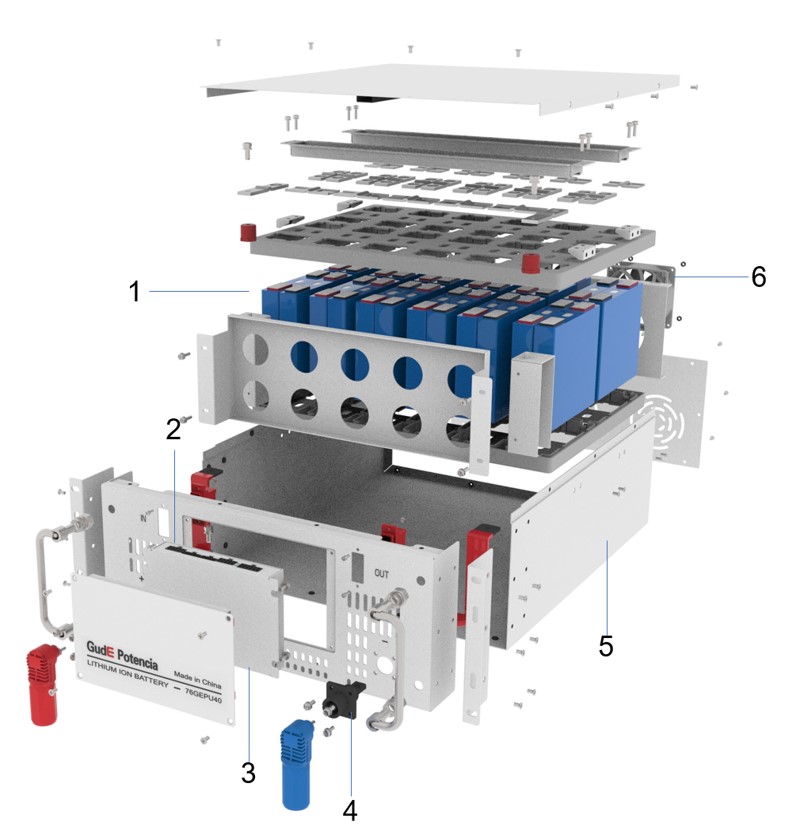

| 1 | LFP Cell | 2 | Communication Port | ||
| 3 | BMU | 4 | Power Outlet | ||
| 5 | Battery Casing | 6 | Electric Fan | ||

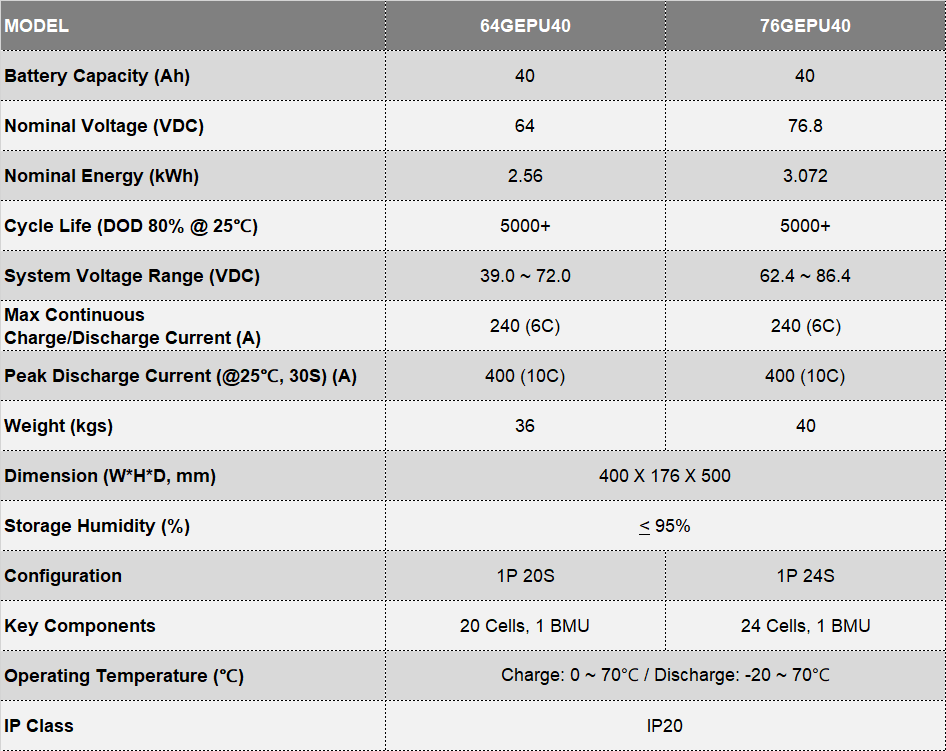

BATTERY MODULE SPECIFICATION

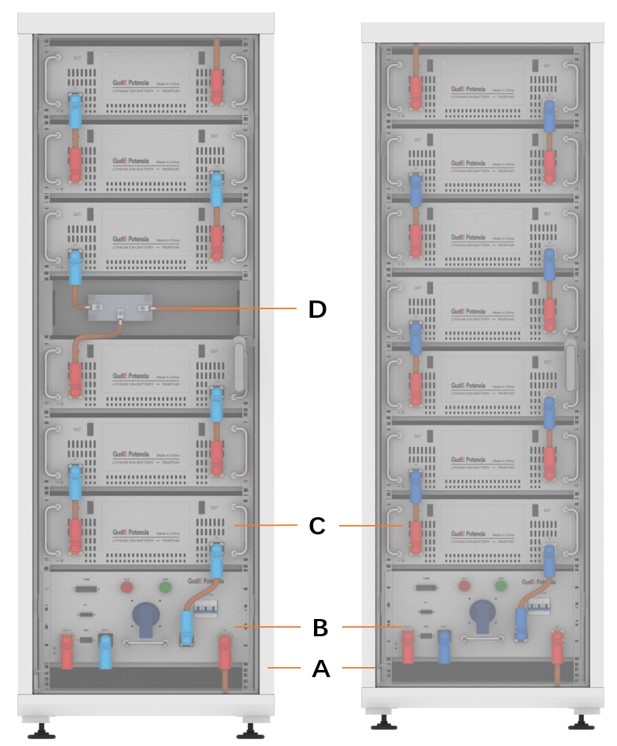

BATTERY RACK SYSTEM
| A | Indoor Rack/Outdoor Cabinet | ||
| B | BPU (Battery Protection Unit) | ||
| 1 | System Output | ||
| 2 | System Isolated Breaker | ||
| 3 | Circuit Breaker | ||
| C | Battery Modules | ||
| D | Mid-Point Connection | ||

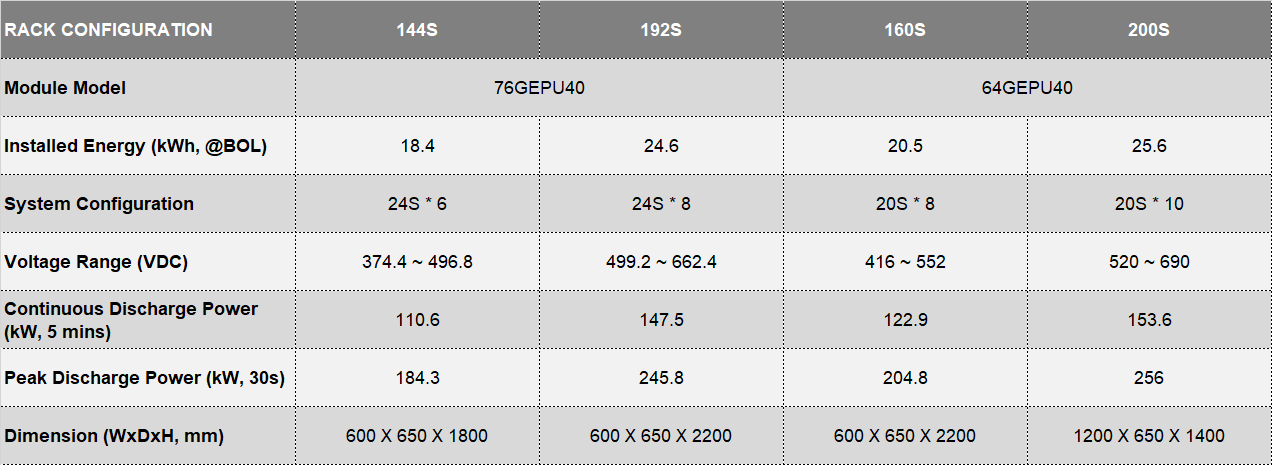

2-POLE BATTERY SYSTEM SPECIFICATION
3-POLE BATTERY SYSTEM SPECIFICATION
PROJECT REFERENCES
• Project Scale: 120kV/50kWh
• Project Location: Chile
• Project Application: UPS
• Project Period: 2019
• Project Scale: 830kWh
• Project Location: South Sudan
• Project Application: UPS + ESS
• Project Period: 2020
