C&I SCALE LITHIUM ION BATTERY ENERGY STORAGE SYSTEM

GudE Potencia provides complete ESS products and solutions from LFP cells, modules to racks and battery containers. Market-oriented R&D strategy enables high flexibility to support different customers' need. Flexible battery racks design enables a wide range of DC voltage from 100V to 1000V in order to meet different kinds of use cases and compatible to different kinds of PCS. Three layers smart BMS ensures high safety and reliability, and remote monitoring interface is also provided to for further upgrade of the power system.

.

3.2V 50Ah - 280Ah

.

2kWh – 10kWh

50kWh – 400kWh

20FT and 40FT Container
1000kWh - 3000kWh

Battery Cell

Battery Module

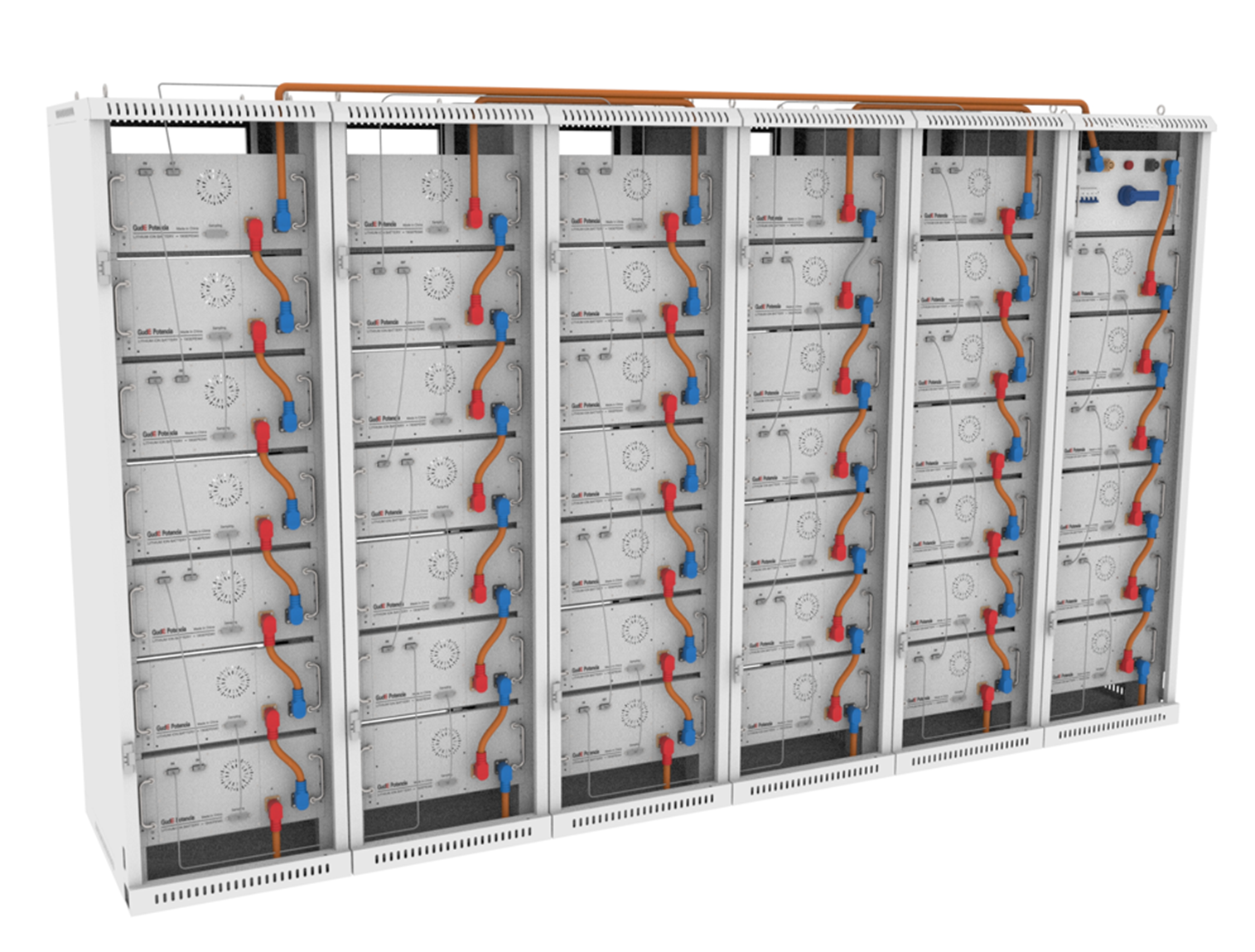

Battery Rack

Battery System

GudE Potencia Battery Energy Storage System (BESS) is designed based on high performance Lithium Iron Phosphate (LFP) Battery and integrated with intelligent Battery Management System (BMS), Thermal Management System (TMS), Balance of System (BoS), etc. to ensure high safety and reliability to be applied to renewable energy power system and micro-grids. GudE Potencia Battery BESS has been designed to be compatible to most of the Power Conversion System (PCS) in the market and it is also provided with intelligent Energy Management System (EMS) with remote monitoring platform as an option to meet customers' diverse demand.

FUNCTIONS AND FEATURES

►	Modular design with a variety of model selections suit for all working scenarios

►	Three levels BMS management system delivers highest reliability and safety

►	Flexible rack design enables a wide DC voltage range from 100V to 1000V

►	Both All-in-One Solution and Standalone Battery Solution are provided to meet different needs

►	Plug-and-Play design enables quick and safe installation and commissioning

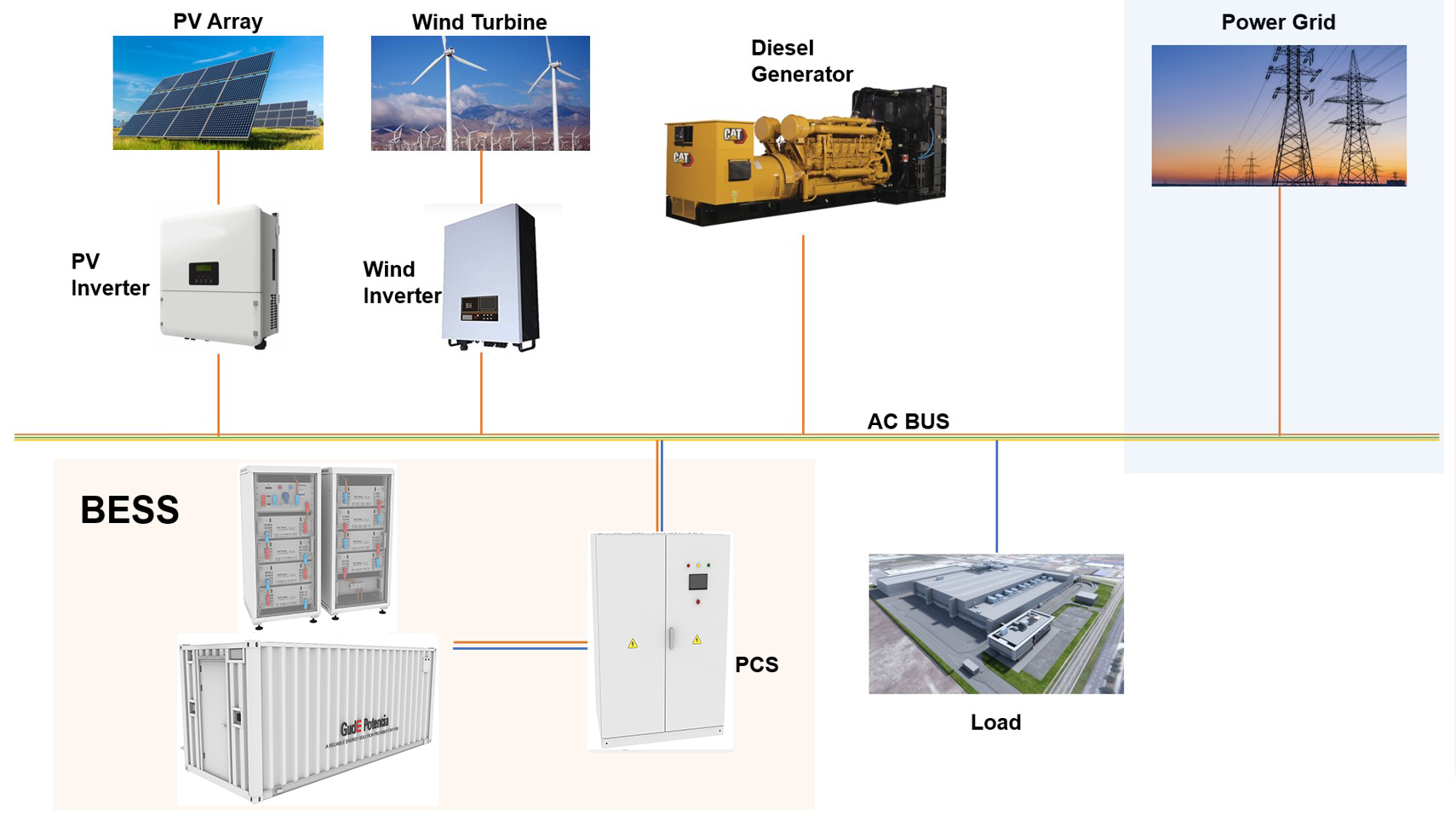

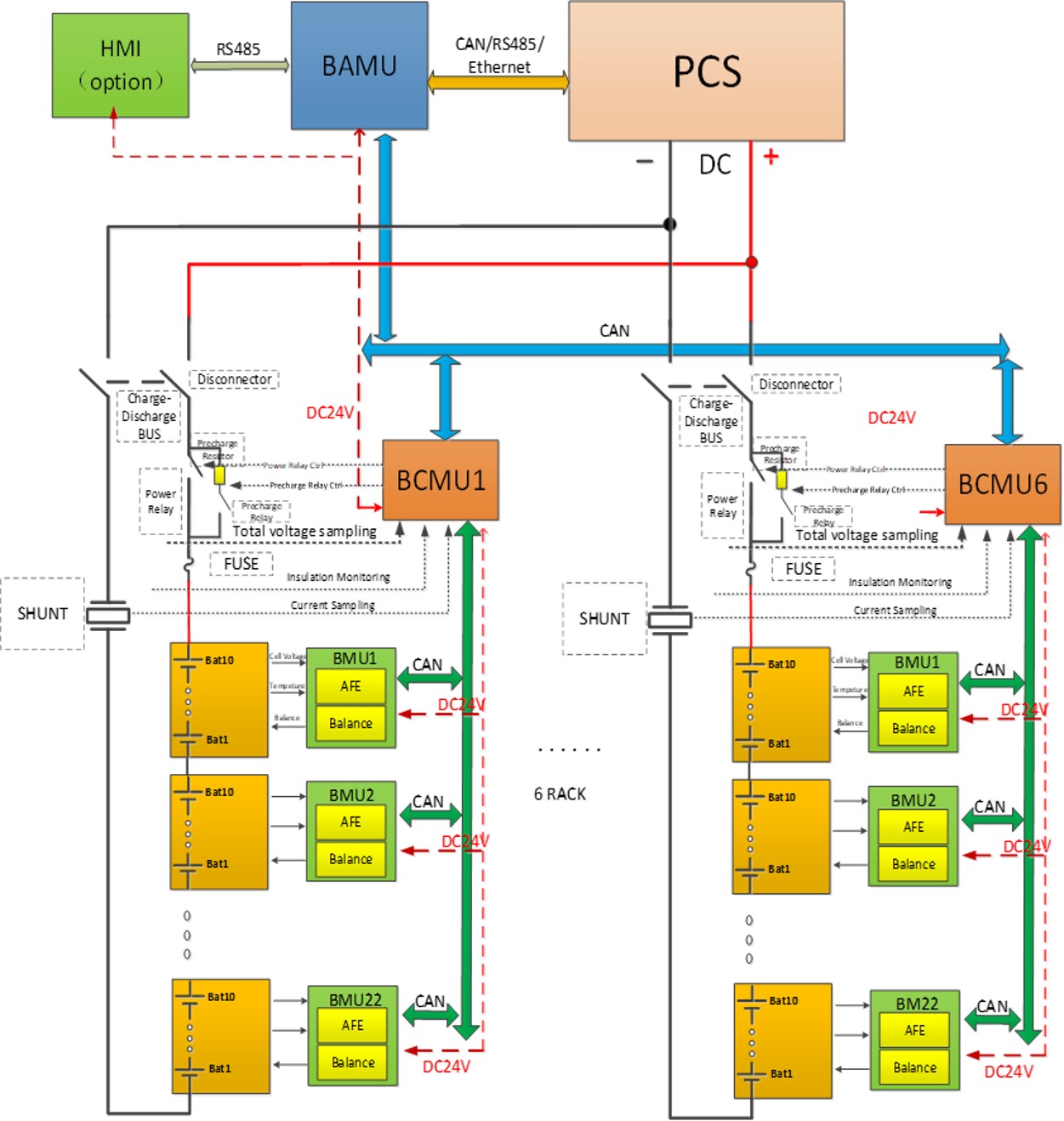

SYSTEM WORKING SCHEMATICS

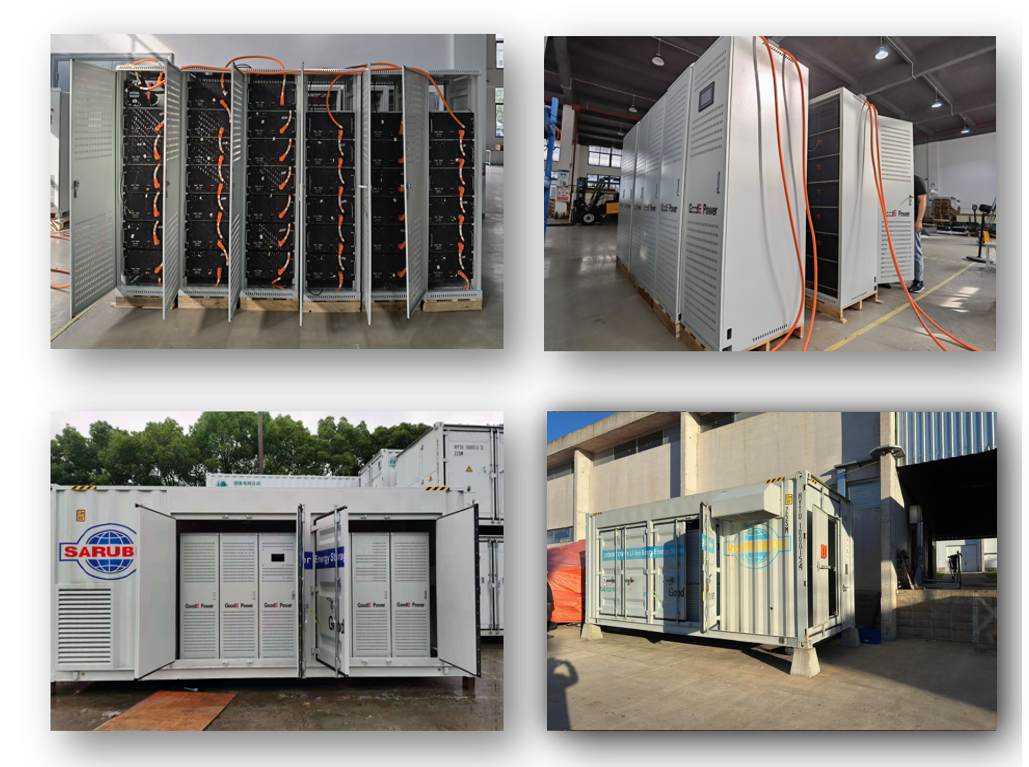

COMPLETE BESS PRODUCTS

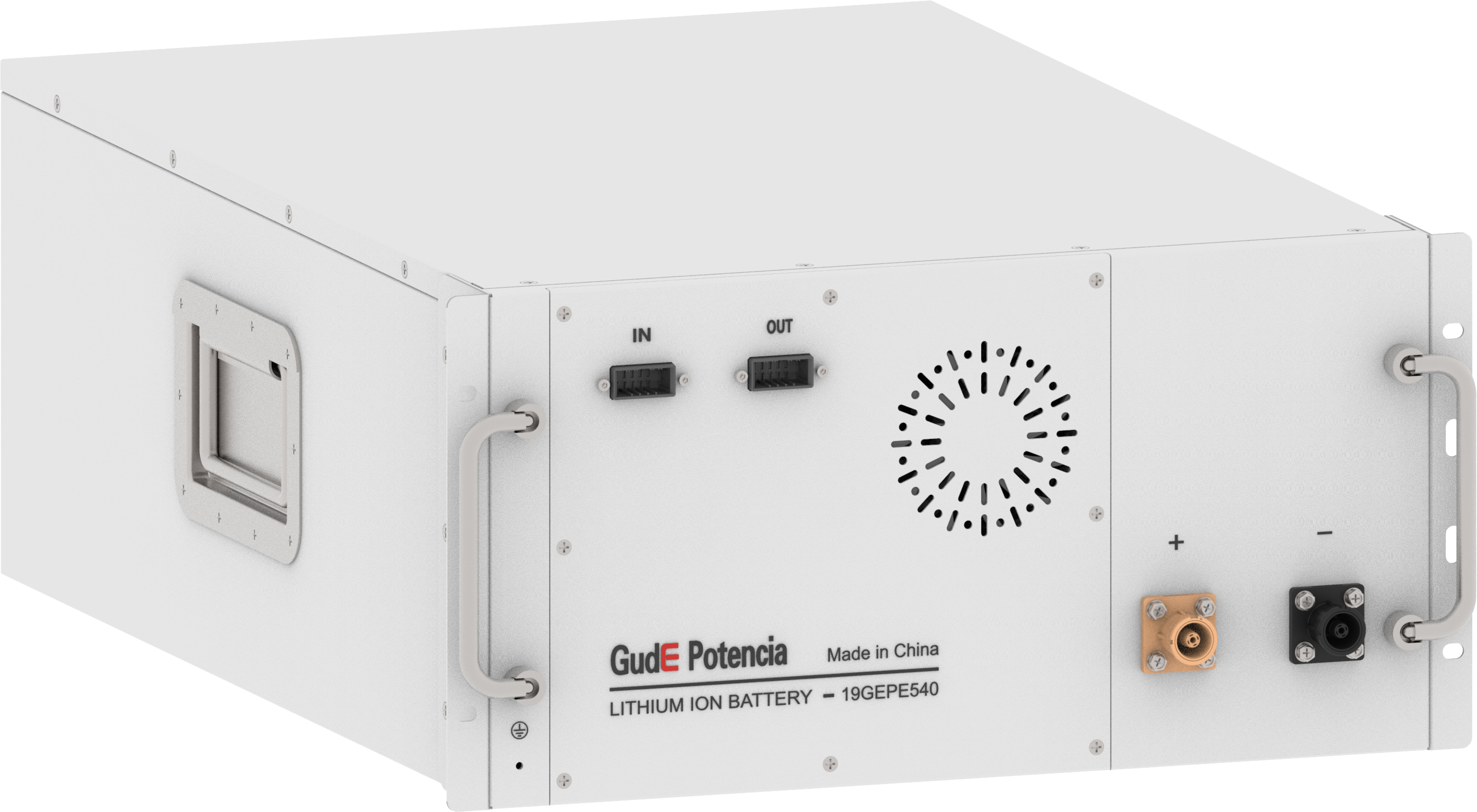

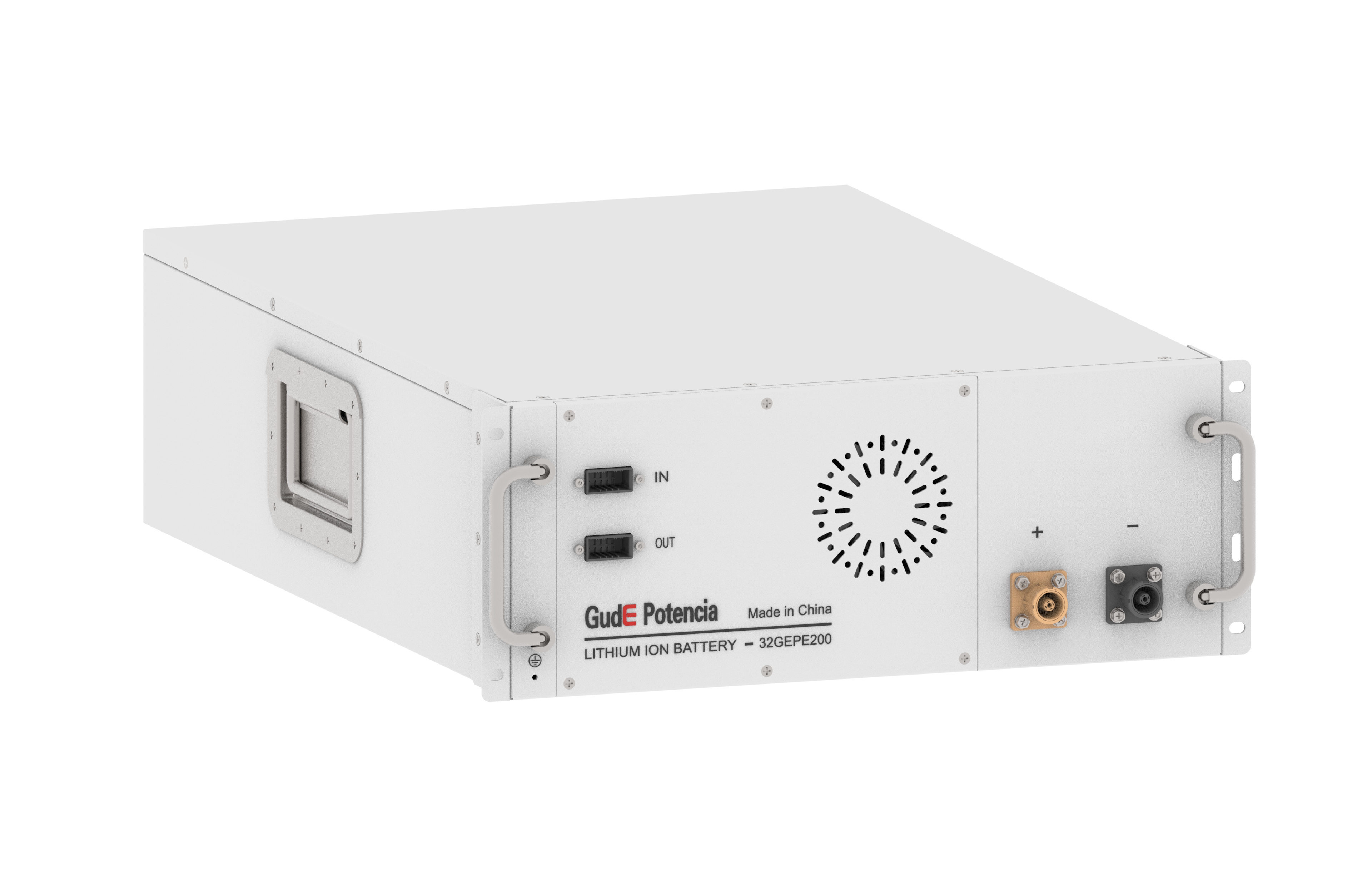

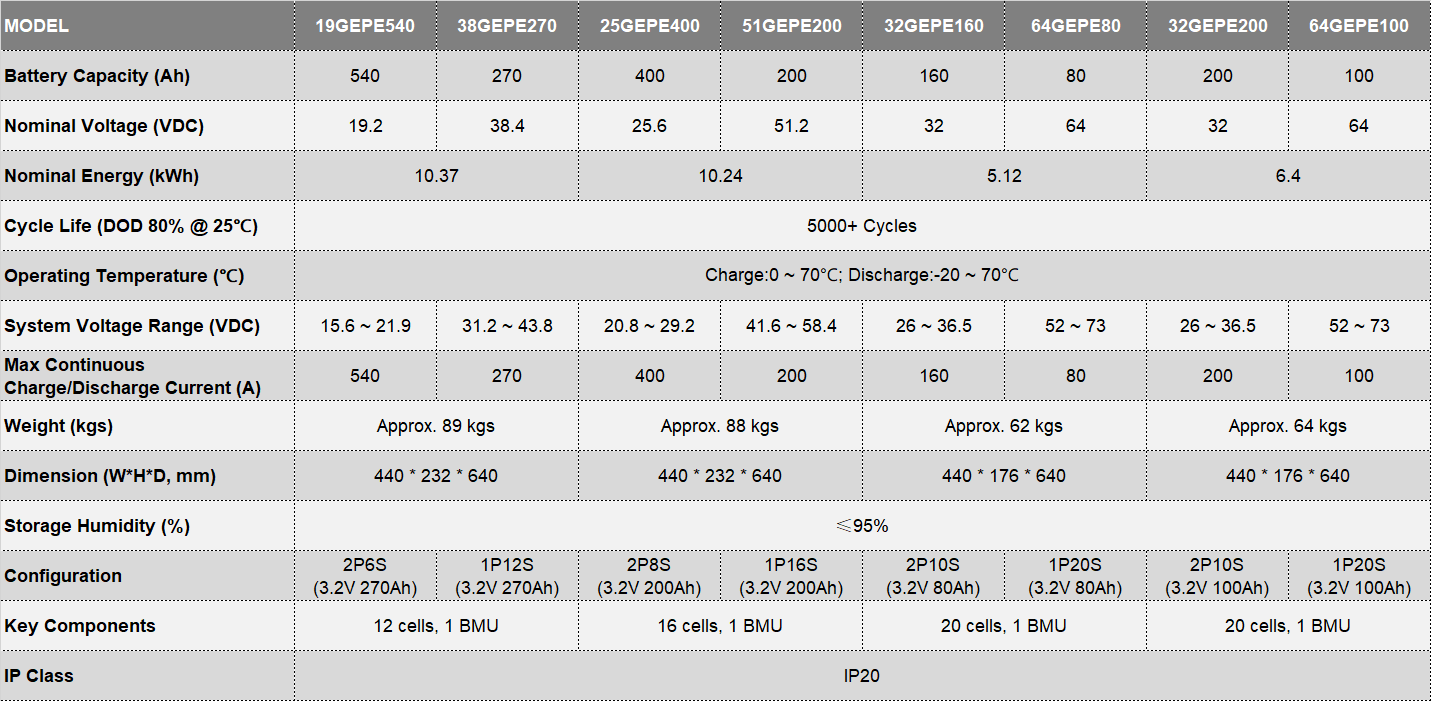

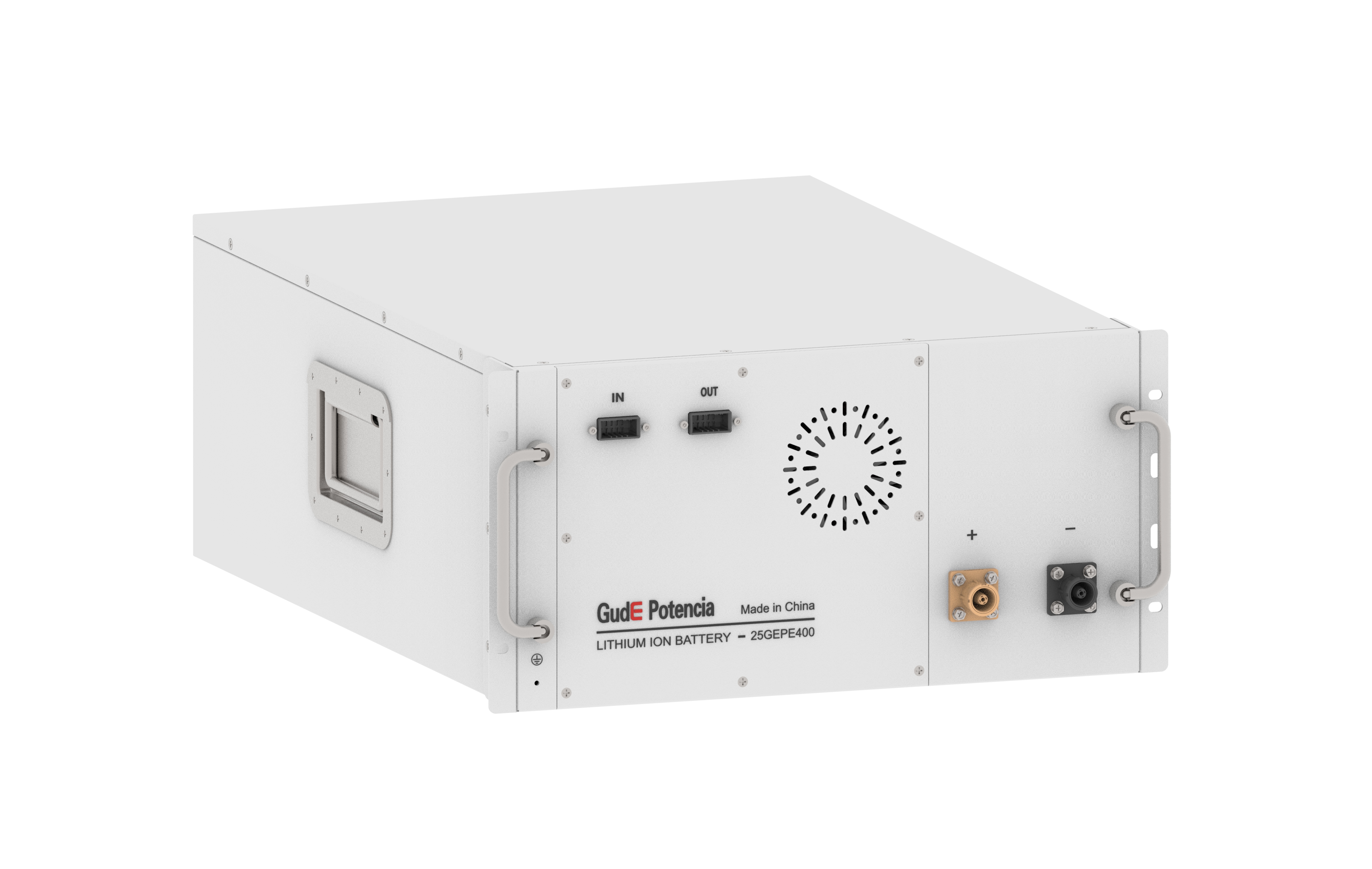

BATTERY MODULE SPECIFICATION

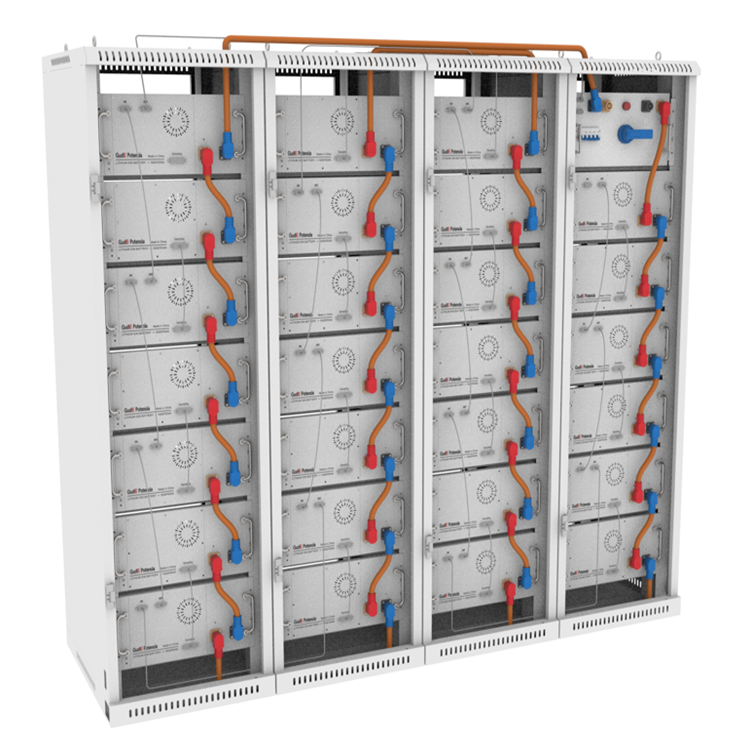

BATTERY RACK SPECIFICATION

INTELLIGENT BMS

►	BMU – Battery Monitoring Unit
	Acquisition of cell information, i.e. voltage, temperature and passive balancing control
►	BCMU – Battery Cluster Management Unit
	Managing multi-BMUs and acquisition of string voltage, current.
►	BAMU – Battery Array Management Unit
	Managing the whole Battery system (several BCMUs)

3-Level BMS for BESS

▪	High SOC Estimation Accuracy (≤ 5%)
▪	High Precision of Cell Sampling
▪	A variety of Interfaces are provided
▪	Optimized Cell Consistency Algorithm
▪	Multiple Charging Safety Control Strategy
▪	Thermal Management Control
▪	User-friendly HMI for Option
▪	Remote Monitoring Function is Available

Features of BMS

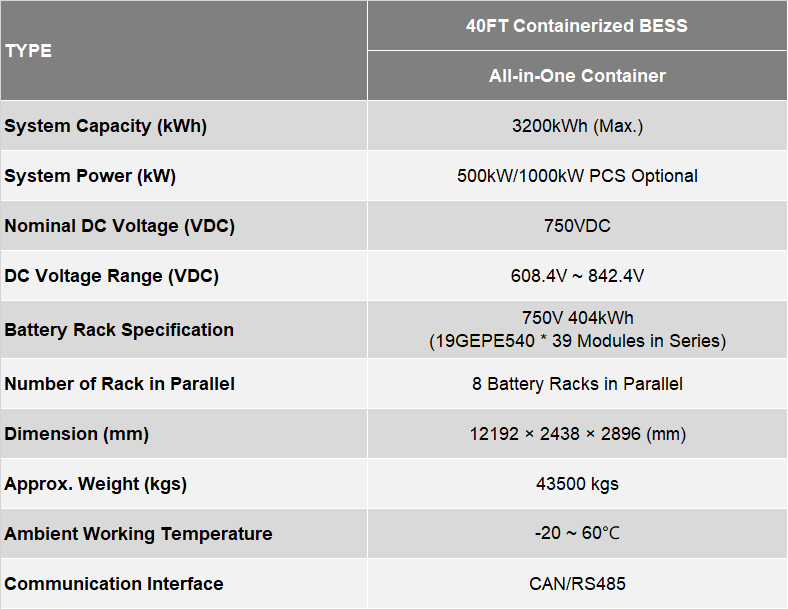

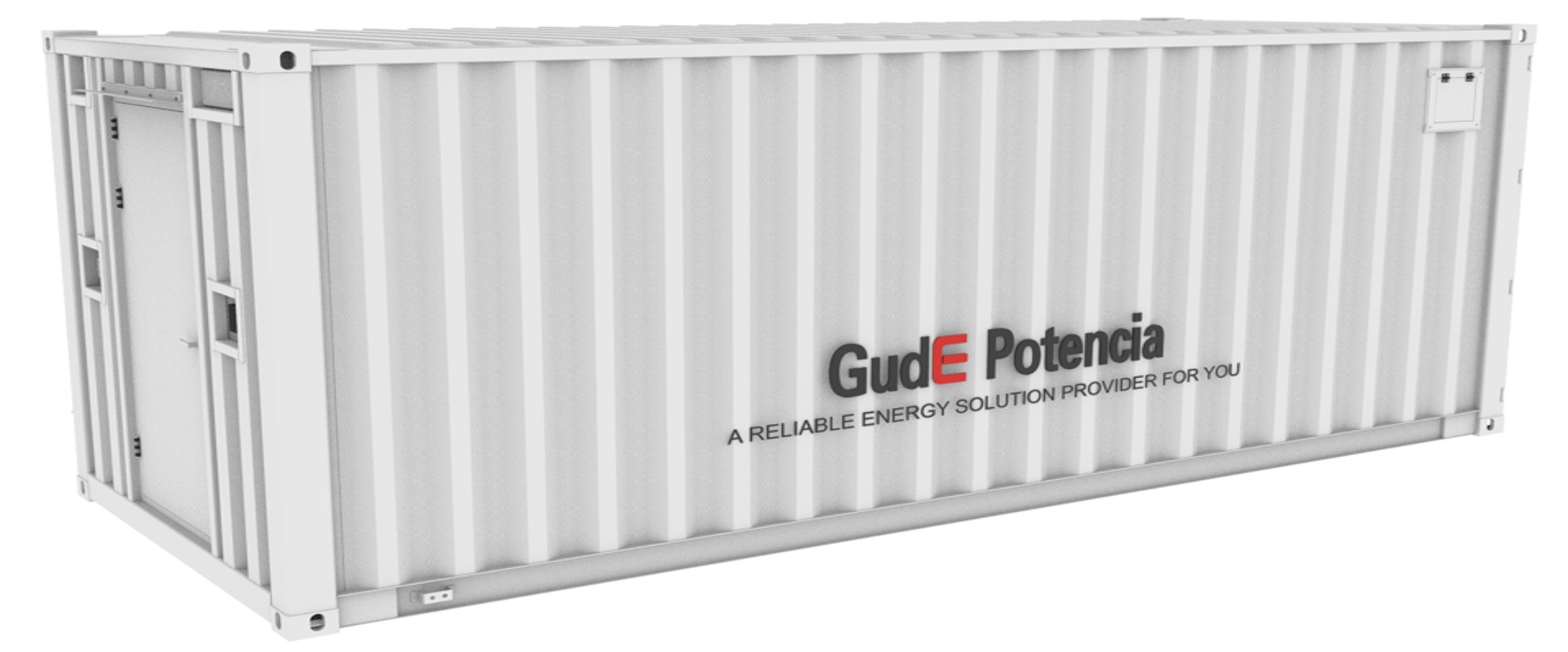

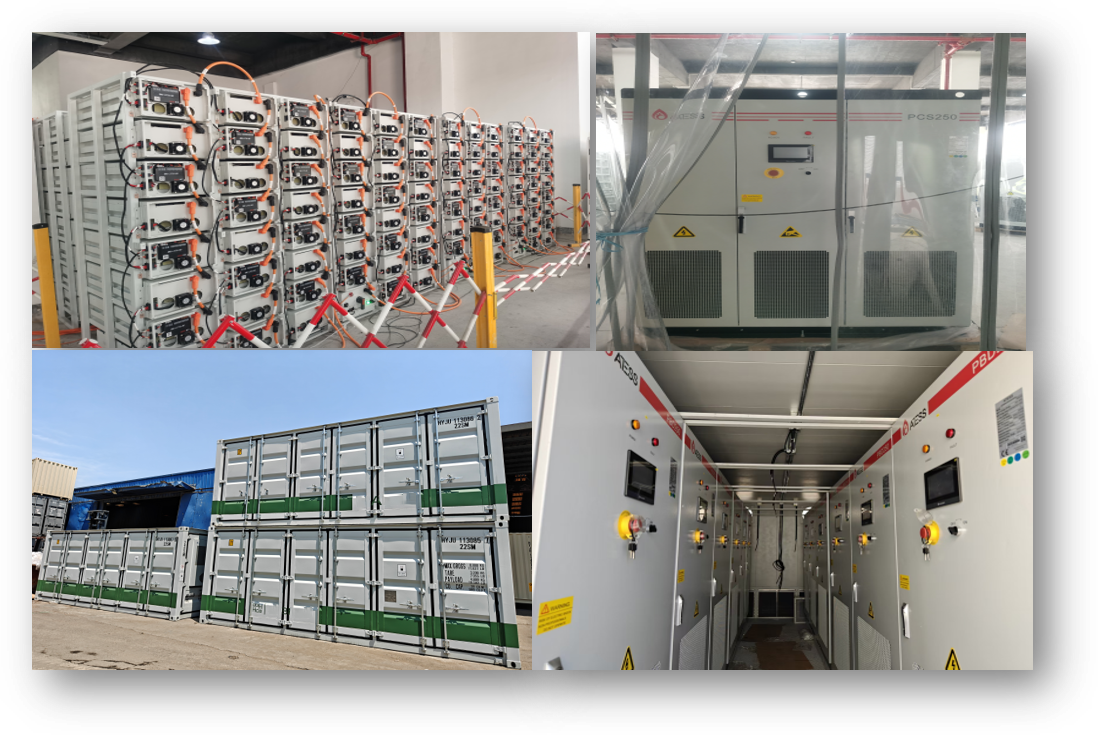

ALL-IN-ONE SOLUTION

nHigh Safety and Security

Equipped with reliable Balance of System equipment (Fire Suppression System, Alarming and Security System, Monitoring System, etc.) to ensure the Containerized Battery Energy Storage System to be operated safely and securely.

nWide Range of Capacity Options

Capacity ranging from 100kWh to 3000kWh are deployed in 10FT, 20FT and 40FT containers are available for different working scenarios to meet customers’ diverse demands.

nFlexible Configurations

All-in-One Container solution (including DC and AC) is provided, and stand-alone battery container solution is also available to meet diverse demand

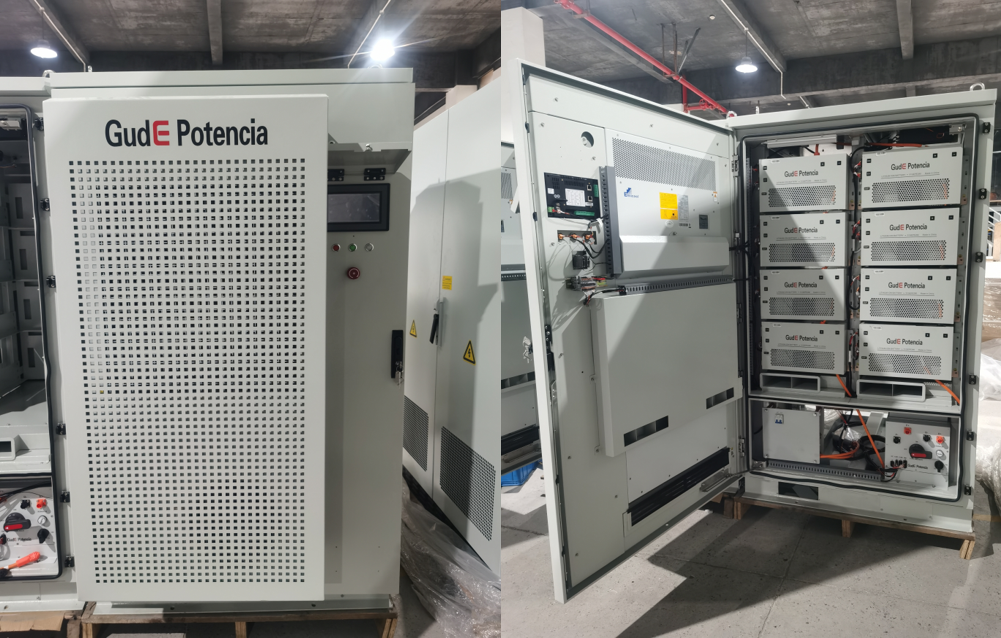

High Safety All-in-One Solution

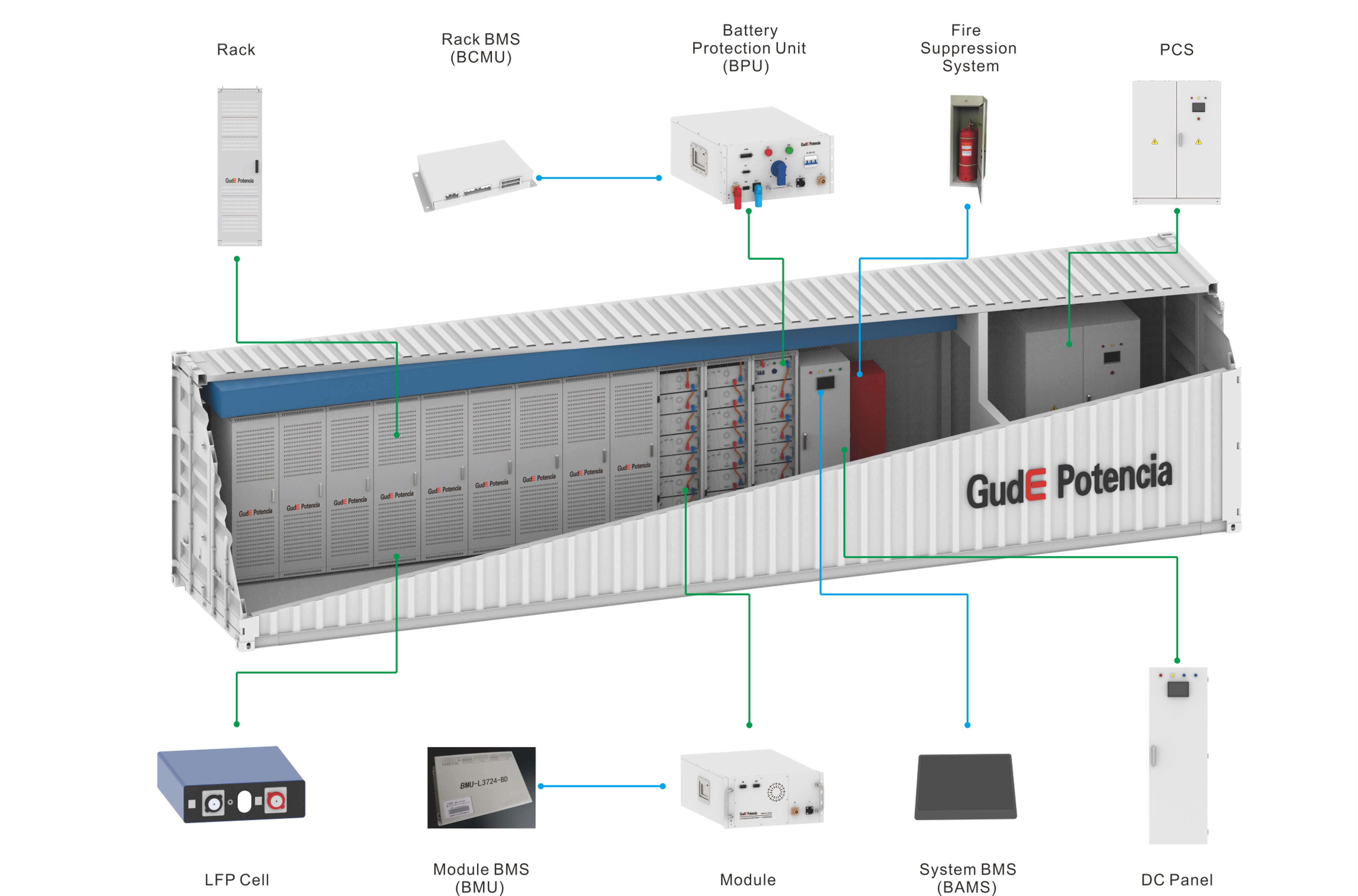

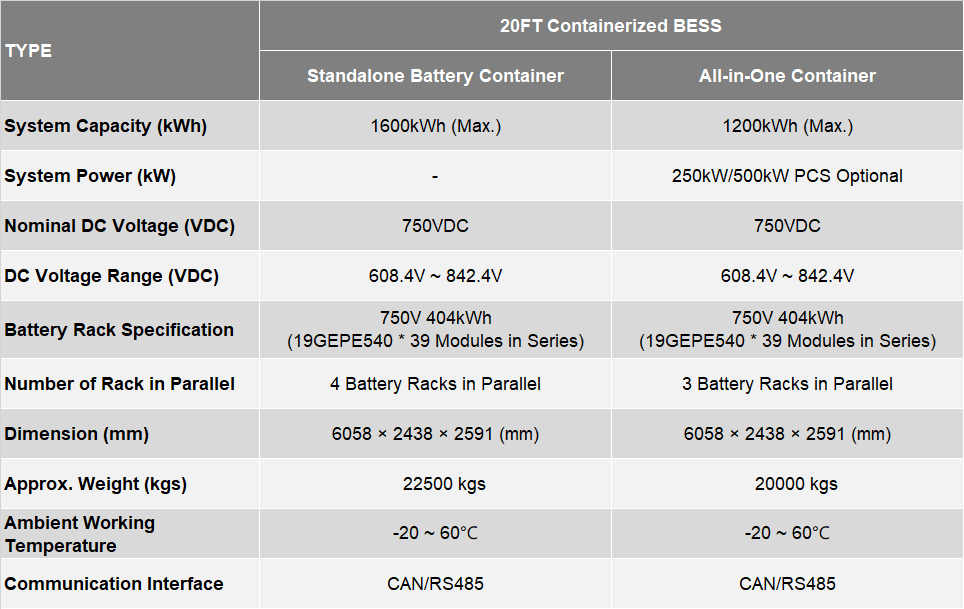

20FT BATTERY CONTAINER CONFIGURATION
